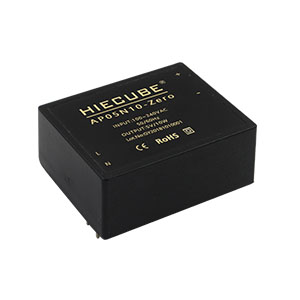

12W High Performance
???Worldwide universal range AC and DC input
?? Built-in lightning protection surge,pulse group attenuator
?? Built-in EMC circuit Meets EN55032 ClassB rating
?? Synchronous rectified, differential mode filtering, common mode filtered output, Regulated, low ripple noise output
?? Small size: 40*32*16mm
?? Protection type: overload protection, short circuit protection, overheat protection
???No need for peripheral circuit design, PCB soldering installation
?? CE/RoHS certified?
Compared with the 12W economy, EMC circuit, lightning protection and surge circuit, pulse group attenuation circuit, output common mode differential mode filter and output filter capacitor are added
??Click on the ACDC power?module below to learn more
| 系列標(biāo)題 | 功率(W) | 輸入電壓(VAC/DC) | 輸出電壓 (VDC) |
輸出電路 | 隔離耐壓(VAC) | 封裝形狀 | 封裝尺寸 (mm) |
|
|---|---|---|---|---|---|---|---|---|
| AP05N10-Zero | 10 | 85~265VAC/100~370VDC | 5 | Single output | 3000 | DIP | 40*32*16 |
|
| AP06N10-Zero | 10 | 85~265VAC/100~370VDC | 6 | Single output | 3000 | DIP | 40*32*16 |
|
| AP09N12-Zero | 12 | 85~265VAC/100~370VDC | 9 | Single output | 3000 | DIP | 40*32*16 |
|
| AP12N12-Zero | 12 | 85~265VAC/100~370VDC | 12 | Single output | 3000 | DIP | 40*32*16 |
|
| AP15N12-Zero | 12 | 85~265VAC/100~370VDC | 15 | Single output | 3000 | DIP | 40*32*16 |
|
| AP20N12-Zero | 12 | 85~265VAC/100~370VDC | 20 | Single output | 3000 | DIP | 40*32*16 |
|
| AP24N12-Zero | 12 | 85~265VAC/100~370VDC | 24 | Single output | 3000 | DIP | 40*32*16 |
|
